The top shield reliably protects the drinking fountain outlet from external influences. The sign attached to it features clear lettering and Braille and can be customised on request, for example with a logo or city coat of arms.

The cover of the drinking water dispenser can be replaced quickly and easily if necessary. This facilitates maintenance and ensures a permanently secure cover.

The cover unit is modular in design and interchangeable, allowing repairs or adjustments to be carried out particularly efficiently. This guarantees a long service life and flexible use.

The base for BEULCO drinking water fountains is made of robust stainless steel (V2A) and is suitable for all models. It has two functional areas: a service area for installing and connecting the supply lines and a drainage area for the safe disposal of residual and dirty water. Thanks to integrated fixtures for accessories, elongated holes for drainage and a pre-assembled DN110 drain, the substructure enables simple, flexible and standard-compliant installation. The service area and thus the installation components are quickly accessible via the service flap.

The installation assembly for the base of the BEULCO drinking water fountain contains all the necessary connections to connect the fountain to the supply line in accordance with regulations. The installation assembly can be installed in 4 directions, depending on the access point.
Included are:

• Quickturn piston valve DN20 IG Rp3/4 x Rp3/4
• Drain valve G1/4
• Double nipple G3/4
• Double nipple reduced G1/2 x G3/8
• Water meter screw connection oB G3/4 x R 1/2
• 90° angle IG G1/2 x G1/2
• Water meter connection set for meter Q3 = 2.5 NW 1/2" - installation length 105-110 mm
• Micro angle seat pressure reducer DN8

The grating of the base provides secure coverage and prevents unauthorised removal thanks to the locking mechanism. During the winter months, the grating is replaced by the winter cover, which protects the shaft from dirt and weather conditions. In combination with the lockable step grate, the area remains accessible and offers optimum protection against frost damage.

A drain strainer is integrated into the drainage area of the base, which reliably prevents dirt particles from entering the KG pipe. This significantly reduces the risk of blockages and ensures the safe drainage of residual and rinse water in the long term. The strainer is easily accessible and can be cleaned or replaced as required.

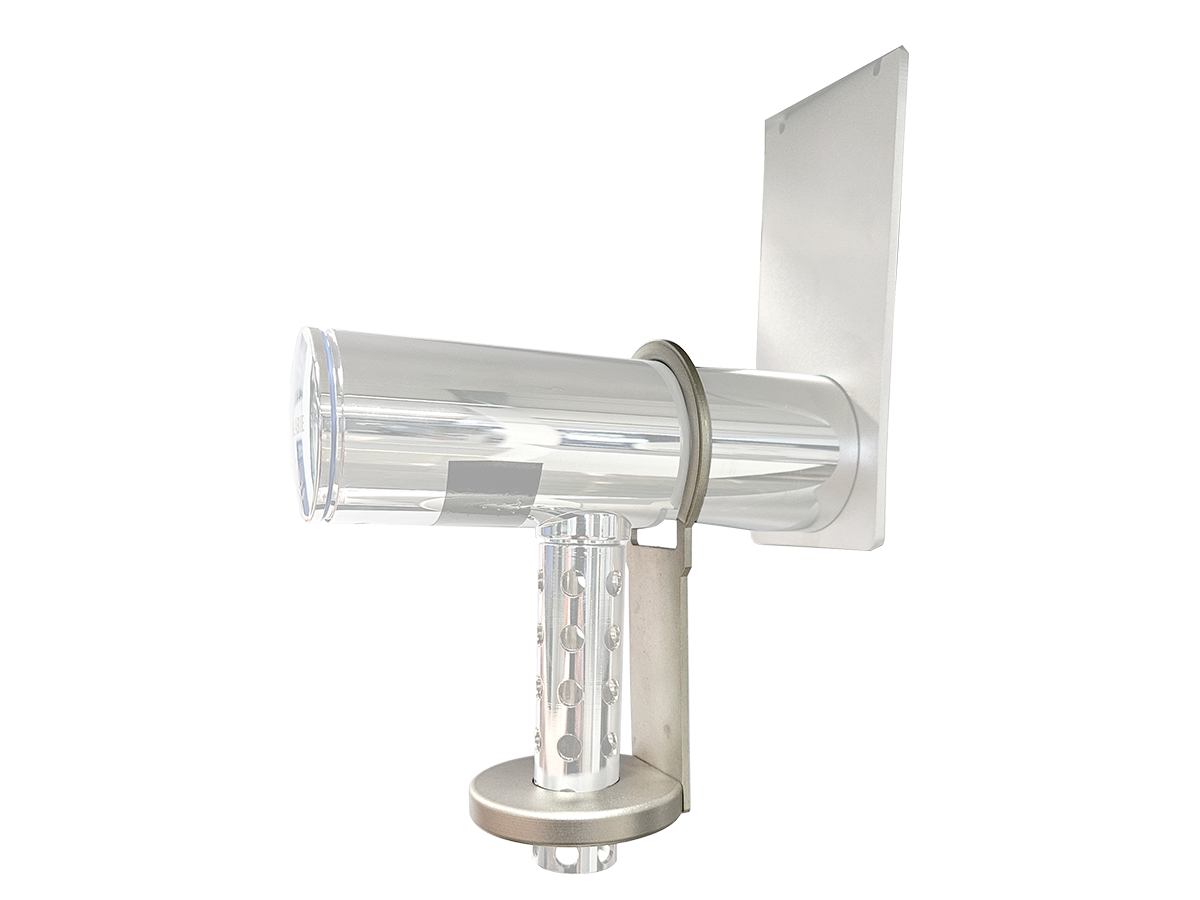

The contact protection on the fitting prevents direct contact with the water outlet, ensuring hygienic use of the drinking water fountain. It helps to maintain drinking water hygiene and protects against contamination through contact. If necessary, it can be replaced in just a few simple steps.

The complete fittings of BEULCO drinking water fountains can be easily replaced in both manual and electronic models. This allows for easy maintenance, quick repairs and maximum flexibility in adapting to different requirements.

All electronic BEULCO drinking water fountains can be individually adjusted to your needs using the infrared remote control.
The following parameters can be set and read:

• Setting of flushing intervals and flushing duration
• Running times when triggered
• Range of the infrared sensor
• Cleaning shutdown can be set or activated
• Safety shutdown in case of continuous reflection can be set
• Fitting can be switched off
• Statistical data for the last 30 days can be retrieved
• Active times of the flushing function in the last 10 days

Statistical data can be transferred to a PC in csv format via USB.

We are happy to assist you in planning your construction project and advise you on individual questions.
